제품명

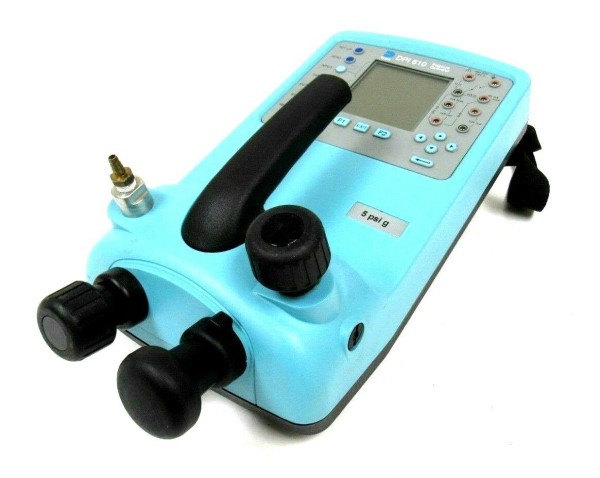

Digital Pressure Indicator/Calibrator
제조사
DRUCK
모델
DPI610 (2MPa)
가격
문의요(재고유)
렌탈
문의요
첨부파일
상세내용
○ Accuracy(integral Transducers)
- Combined-Linearity,hysteresis & repeability
- 70 mbar to 35 mbar range ; ±0.05% FS
- 35 bar to 700 bar range ; ±0.1% FS
- Maximum working pressure ; 150% FS
○ Resolution
- Instrument < 100 mbar FS ; 0.01% FS
- Instrument > 100 mbar FS ; 0.005% FS
○ Electrical Safety (IEC1010 Class 3)
○ Electromagnetic compatability EMC (EN50081-1,EN50082-1)
○ Power Output
- Maximum combined load ; 30 mA
- +24 V Output (±5%, Temperature stability ±0.02%/℃)
- Analog Output (2 Volts full scale, Calibrated to Pressure scale)
- Frequency Bandwidth (2KHz-3dB)
