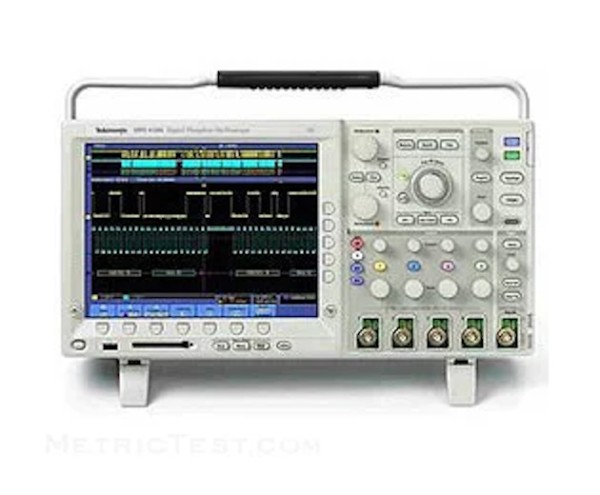

1 GHz Bandwidth

4 Channels

5 GS/s Sample Rate (per channel)

10 Megasample Record Length on All Channels

Wave Inspector Controls Provide Unprecedented Efficiency in Waveform Analysis

I²C, SPI, CAN Serial Triggering and Analysis

10.4 in. (264 mm) XGA Color Display

Small Footprint and Lightweight

    – Only 5.4 in. (137 mm) Deep and 11 lbs. (5 kg)

USB and CompactFlash on Front Panel for Quick and Easy Storage

Built-in Ethernet Port

Plug ‘n’ Play Connectivity and Analysis Software Solutions

USB 2.0 Device Port for Direct PC Control of Oscilloscope Using USBTMC

Suite of Advanced Triggers

e*Scope® Remote Viewing and Control

Interoperability with Tektronix Logic Analyzers

TekVPI™ Probe Interface Supports Active, Differential and Current Probes for Automatic Scaling and Units
