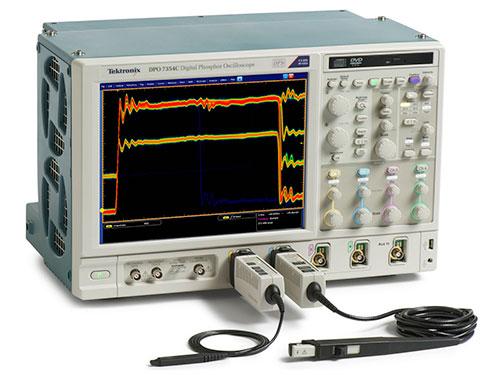

Input Channels

4

Hardware Analog Bandwidth (-3 dB)

500 MHz

1 GHz

2.5 GHz*¹

Rise Time 10% to 90% (typical)

415 ps

225 ps

150 ps

Rise Time 20% to 80% (typical)

260 ps

160 ps

100 ps

DC Gain Accuracy

±1.25% (±1% typical) with offset/position set to 0

Hardware Bandwidth Limits

250 MHz or 20 MHz

Input Coupling

AC, DC, GND

Input Impedance (software selectable)

1 MO ±1% or

12pF ±2pF or

50 O ±1%

Input Sensitivity, 1 MO

1 mV/div to 10 V/div

Input Sensitivity, 50 O

1 mV/div to 1 V/div

Vertical Resolution

8 bit (>11 bit with averaging)

Max Input Voltage, 1 MO

±150 V CAT I, derate at 20 dB/decade to 9 V_RMSabove 200 kHz

Max Input Voltage, 50 O

5 V_RMS, with peaks less than ±24 V

Position Range

±5 divisions

Offset Range

1 mV/div to 50 mV/div: ±1 V

50.5 mV/div to 99.5 mV/div: ±0.5 V

100 mV/div to 500 mV/div: ±10 V

505 mV/div to 995 mV/div: ±5 V

1 V/div to 5 V/div: ±100 V

5.05 V/div to 10 V/div: ±50 V

Offset Accuracy

1 mV/div to 9.95 mV/div: ±0.2% (offset value-position) ±0.1 div ±1.5 mV

10 mV/div to 99.5 mV/div: ±0.35% (offset value-position) ±0.1 div ±1.5 mV

100 mV/div to 1 V/div: ±0.35% (offset value-position) ±0.1 div ±15 mV

1.01 V/div to 10 V/div: ±0.25% (offset value-position) ±0.1 div ±150 mV

Delay between any two channels (typical)

=100 ps (50 O, DC coupling and equal V/div at or above 10 mV/div)

Channel-to-channel Isolation (Any Two Channels at Equal Vertical Scale Settings)

=100:1 at =100 MHz and =30:1 above
