| Specifications |

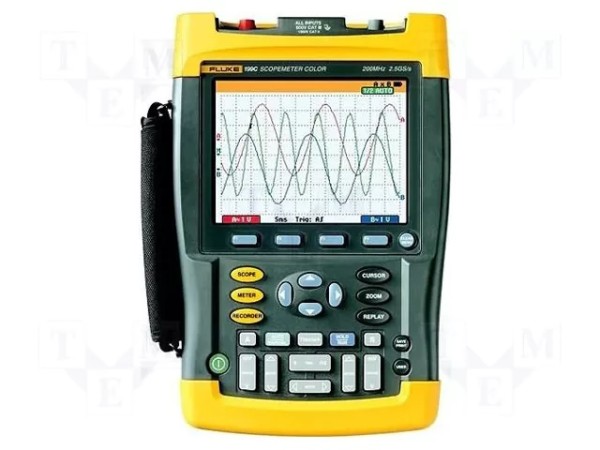

| Bandwidth | | Fluke 199C: | 200 MHz | | Fluke 196C: | 100 MHz | | Fluke 192C: | 60 MHz |
|
| Real-time sample rate | | Fluke 199C: | 2.5 GS/s | | Fluke 196C: | 1 GS/s | | Fluke 192C: | 500 MS/s |
|
| Inputs and digitizers | | 2 plus external / DMM input |
|
| Independently floating isolated inputs | | Up to 1000 V between inputs, references and ground |
|
| Timebase range | | 5 ns - 2 min/div | | 10 ns - 2 min/div (192B) |
|
| Input sensitivity | | 190C Models: | 2 mV-100 V/div |
|
| Trigger types | | 190C Models: | Connect-and-View™, Free Run, Single Shot, Edge, Delay, Video, Selectable pulse width and External | | Dual slope trigger and Event trigger (n-cycle) |
|
| Glitch capture | | 50 ns (5 µs/div - 1 min/div) |
|
| Scope measurements | |
| Maximum record length | | ScopeRecord mode: | 27,500 pts per input | | Scope mode: | 3,000 pts per input |
|
| Memory | | Screens + Setups: | 15 | | Replay + Setups: | 2 |
|
| Display | | 190C Models: | 144 mm full color LCD with fast update rate |
|
| Persistence | | 190C Models: | Digital persistence giving analog oscilloscope-like waveform decay |
|
| Waveform Compare | | 190C Models: | Waveform reference with automatic Pass/Fail testing |
|
